TC-USB-232 USB轉232

TC-USB-232　USB to RS232 Convertercable

update：2009/07/14

特點：

The USB convertercable has a built-in RS232 interface accessible via
D-SUB 9 male connector communicates between any USB compliant
host system and AMENS HMI equipped with built-in RS232 interface.

Specifications：

1. Operating temperature range: 5 to 40℃	6. Serial interface RS-232, D-SUB 9 male plug compatible 　with AMENS H.M.I com1
2. Storage temperature: -20 to +70℃	7. Max current: 120mA at 5VDC
3. Total cable length: 2 meters	8. Max humidity: 85%
4. USB version: version 1.1
5. Optical isolation: no

Hardware design of the USB-Convertercable：

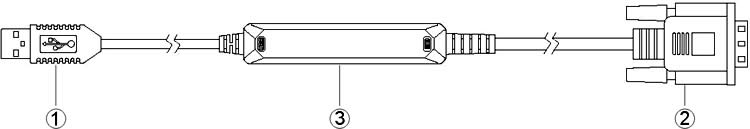

Connecting System：

Connection：

USB interface：

D-SUB 09M (RS232) interface

Pin	Name	Description
1	None
2	RX	Positive RX (RS-232)
3	TX	Positive TX (RS-232)
4	None
5	GND	Ground
6	None
７	None
8	None
9	None

Pin	Name	Description
1	VCC	+5V
2	D-	Data-
3	D+	Data+
4	GND	Ground

下載 PDF 檔(189KB)	驅動程式 v110 下載 for Win 98/2K/XP/Vista/7 (3.02 MB)
驅動程式安裝方式 (444KB)
