| Type |
PN-25-08 |
PN-25-12 |
PN-25-16 |
PN-25-24 |
PN-25-32 |
PN-25-40 |
PN-25-48 |
PN-25-56 |
PN-25-64 |
| Beams |
8 |
12 |
16 |
24 |
32 |
40 |
48 |
56 |
64 |
| Sensing heiht |
180mm |
280mm |
380mm |
580mm |
780mm |
980mm |
1180mm |
1380mm |
1580mm |
| Beam pitch |
25mm |
| Setting distance |
0.5m
~ 5.0m |
| Sensible object |
Min
opaque object : 30ψ |
| Operating voltage |
24
± 20%VDC; Ripple ± 20% P-PMax. |
| Current consumption |
60mA
/ 8 Beams Max. |

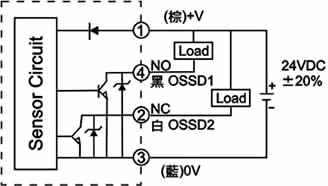

| Output method |
NPN
NO & NPN NC, Two way output |
| Output current |
100mA
Max. |
| Output status |
All
light channel light no |
| Protection circuit |
Short
circuit & polarity reversed protection |
| Residual voltage |
0.8V
Max. |
| Leakage current |
0.8mA
Max. |
| Indicator |
Yellow
: Power; Green : Clear condition; Red : Break |
| Response time |
10ms
Max. |
| Reset time |
Output
reset time ＜ 200ms |
| Illumination |
Lamp
＜ 10000 Lux; Sunlight ＜ 20000Lux |
| Protection degree |
IP65 |
| Connection method
|
M12
x 1.0 Connector |
| Housing material |
Housing
: Aluminum; End cap : PBT; Front cover : Acrylic |
| Circumstance |
0
~ 50℃ ; 25% ~85% RH |
| Vibration resistance |
10
~ 55Hz/1.5mm，2 hours along each of X.Y.Z. |
