PK　Mini & Water-Proof Photo Sensor update : 2007/06/25

特點：
◆ Open collector output allows a wide range of application, such as direct relay drive and PLC input.
◆ Both NPN & PNP NO open collector output models are together.
◆ High performance with low cost and easy to use.
◆ Waterproof protection and vibration/ shock resistant structure is created by resinfilled metal package, greatly improving the environmental protection.
◆
 Long sensing distance 30cm,2m,6m.
◆ Quick delivery and variety selection.

主要規格：
 Type PK-D30N PK-R200N PK-T600N
 Description Diffuse reflection Retro reflection Through reflection
 Sensing distance 30cm 2m 6m
 Current consumption 30mA 30mA 45mA
 Weight 78g 78g 180g
 Output method NPN & PNP two way, open collector NO
 Illumination Sunlight < 10,000 Lux. ; Lamplight < 5,000 Lux.
 Operating voltage 10 ~ 30VDC ; Ripple < 20% of peak to peak
 Output current 150mA Max
 Response time 2ms Max.
 Hyteresis 10% of sensing distance Max.
 Operating temp./hum. -20℃ ~ +60℃ ; 35% ~ 85% RH
 Circuit protection Short circuit & Polarity reverse protection
 Emitter Infrared LED
 Sensitivity adjuster 270°trimmer
 Housing material Case:PBT, Lens:PC, Cable:4 cores/2m
 Protection degree IP65

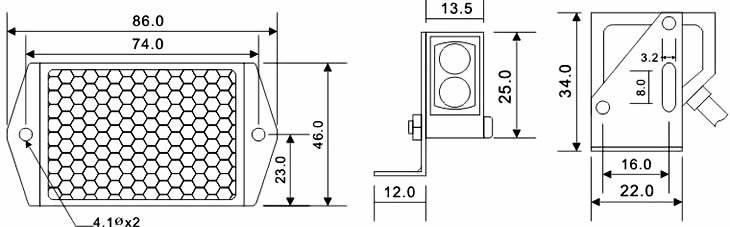

外觀尺寸 (Unit : mm)：

接線圖：

　Red：10 ~ 30VDC
　Black：0V
　White：NPN
　Yellow：PNP
