| TYPE |
SM-E600-5 |
SM-E600-12 |
SM-E600-15 |
SM-E600-24 |
SM-E600-27 |
SM-E600-48 |
| DC VOLTAGE |
5V |
12V |
15V |
24V |
27V |
48V |
| RATED CURRENT |
100A |
50A |
40A |
25A |
22.2A |
12.5A |
| CURRENT
RANGE |
0 ~ 100A |
0 ~ 50A |
0 ~ 40A |
0 ~ 25A |
0 ~ 22.2A |
0 ~ 12.5A |
| RATED POWER |
500W |
600W |
600W |
600W |
599.4W |
600W |
| RIPPLE & NOISE
(max.) Note.2 |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
200mVp-p |
| VOLTAGE ADJ. RANGE |
4.75 ~ 5.5V |
10 ~ 13.5V |
13.5 ~ 16.5V |
22 ~ 26.4V |
24 ~ 30V |
43 ~ 56V |
| VOLTAGE TOLERANCE
Note.3 |
± 2.0% |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
± 1.0% |
| LINE REGULATION |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
| LOAD REGULATION |
± 2.0% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
± 0.5% |
| EFFICIENCY (Typ.) |
78% |
83% |
84% |
87% |
87% |
88% |
| OVER
VOLTAGE |
5.75 ~ 6.3V |
13.8 ~ 16.2V |
18 ~ 21V |
27.6 ~ 32.4V |
31 ~ 36.5V |
57.6 ~ 67.2V |
| Protection type:Shut down o/p
voltage, re-power on to recover |
| OVER LOAD |
105 ~ 125%
of rate load |
| Protection type:Shut
down o/p voltage, re-power on to recover |
| OVER TEMPERATURE |
85℃
± 5℃ (TSW1 : Detect on heat sink of power transistor) |
| Protection type:Shut
down o/p voltage, recovers automatically after temperature goes down |
| SETUP,
RISE, HOLD TIME |
1000ms, 50ms,
16ms/230VAC 1000ms, 50ms, 14ms/115VAC at full load |
| VOLTAGE RANGE |
90 ~ 132VAC/180 ~ 264VAC selected
switch 254 ~ 370VDC |
| FREQUENCY RANGE |
47 ~ 63Hz |
| AC CURRENT |
12A/115VAC 7.5A/230VAC |
| INRUSH CURRENT
(max.) |
30A/115VAC 50A/230VAC |
| LEAKAGE CURRENT |
＜2.0mA/240VAC |
| WORKING TEMP.,
HUMIDIITY |
-10 ~ +60℃
(Refer to output load derating curve), 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY |
-40 ~ +85℃, 10 ~ 95%RH |
| TEMP.
COEFFICIENT |
± 0.05%/℃ (0
~ 50℃) |
| VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle,
60min. each along X, Y, Z axes |
| SAFETY STANDARDS |
UL60950 Approved |
| WITHSTAND VOLTAGE |
I/P-O/P : 3KVAC IP-FG : 1.5KVAC O/P-FG
: 0.5KVAC |
| ISOLATION RESISTANCE |
I/P-O/P, I/P-FG,
O/P-FG : 100M Ohms/500VDC |
| MTBF |
197K hrs min. MIL-HDBK-217F(25℃) |

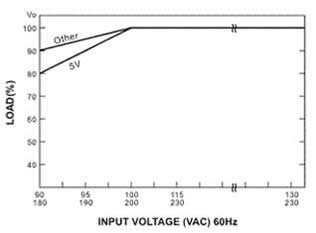

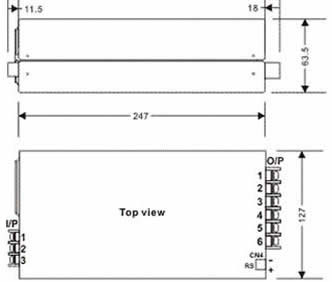

| DIMENSION |
247 × 127 ×
63.5mm( L × W × H ) |
| PACKING |
2Kgs/pcs, 6pcs/12Kgs/0.76CUFT |
| NOTE |
1. All
parameters NOT specially mentioned are measured at 230VAC input, rated
load and
25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12〞twisted
pair-wire
terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation. |
