RK　Solid State Relay PCB Type update : 2016/07/13

特點：
◆ High reliability,long life.
◆ Safety.
◆ Low input power consumption.
◆ No contact points.
◆ No switching sparks.
◆ No noise.
◆ No mechanical damage.

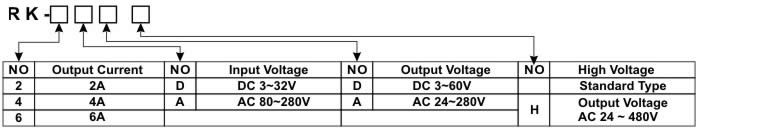

選購型號：

主要規格：
 Type RK-2DA RK-4DA RK-6DA RK-2DD RK-4DD RK-2AD RK-4AD
 Max load current 2A 4A 6A 2A 4A 2A 4A

 Max 1-cycle peak
 surge

 30A 50A 60A 3A 8.5A 3A 8.5A
 Control voltage range 3 ~ 32 VDC 3 ~ 32 VDC 80 ~ 280 VAC
 Must turn off voltage Max 1.0 VDC Max 1.0 VDC Max 10 VAC
 Load voltage range 24 ~ 280 VAC 3 ~ 60 VDC 3 ~ 60 VDC
 Min blocking voltage 600 VAC 80 VDC 80 VDC
 Max off-state leakage Less 5 mA Less 1 mA Less 1 mA
 Dielectric strength input-
 output		 4000 VACrms 2500 Vrms 2500 Vrms
 Turn off time Less 1/2 AC cycle Less 1/2 AC cycle Less 1/2 See

 Max on-state dv/dt

 100 V/μ SEC 200 V/μ SEC
 Max on-state voltage drop 1.5 VAC 2.0 VAC 1.2 Vrms
 Input impedance 1.5 Kohm
 Frequency range 47 ~ 70 Hz
 Turn on time

Less 2 mSec
 Capacitance in-out Less 15 PF
 Weight 10g 12g 12g 10g 12g 10g 12g

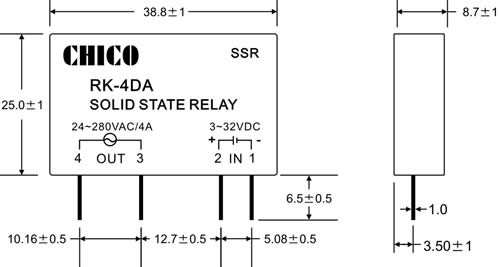

外觀尺寸 (Unit : mm)：
　　　

下載PDF檔 (143 KB)
