| ◆ | 內裝指示燈 (LED) 指示其動作。 |
| ◆ | 用表面貼焊技術，提供最可靠的品質。 |
| ◆ | 高絕緣阻抗超過 50MΩ (500VDC)。 |
| ◆ | 高耐壓超過 2.5KV |
| ◆ | 具零點觸發方式，可有效避免電磁/高頻干擾。 |
| ◆ | 內裝緩衝回路，可吸收外來的瞬間突波。 |
 |
| RA Rolid State Relay | update : 2004/03/22 |
| 特點： |
|
|

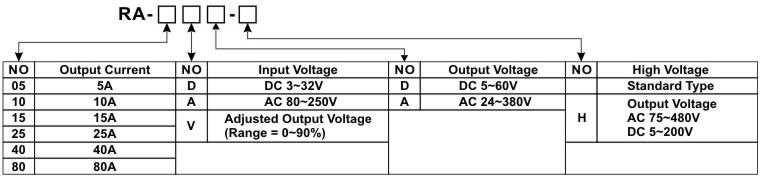

| 選購型號： |
 |
| 主要規格： |
| Type | DA | DA-H | AA | AA-H | VA | VA-H | DD | DD-H |
| Load current | 5~80A | 10~80A | 5~80A | 10~80A | 5~40A | 10~40A | 5~10A | 5~10A |
| Output operating voltage |
24~380VAC | 75~480VAC | 24~380VAC | 75~480VAC | 24~380VAC | 75~480VAC | 5~60VDC | 5~200VDC |
| Leakage current | ＜3.0mA | ＜5.0mA | ＜3.0mA | ＜5.0mA | ＜5.0mA | ＜0.8mA | ||
| Intput operating voltage |
3 ~ 32VDC | 80 ~ 250VAC 50/60Hz | - | 3 ~ 32VDC | ||||
| Trigger current | 7.5mA/12VDC max | 5.0mA/100VAC max | - | 7.5mA/12VDC max | ||||
| Control method | Zero cross trigger | Phase control | Isolated by photocouple | |||||
| Response time | ON＜10ms, OFF＜10ms | ON＜20ms, OFF＜210ms | - | 1ms＜ON+ OFF＞ | ||||
| Variable resistance |
- | Trimmer 250KΩ/110V, 500KΩ/220V, 1MΩ/380V |
- | |||||
| Voltage drop | 1.6V | |||||||
| Insulation resistance |
Min. 50MΩ (500VDC) | |||||||
Dielectric |
2500VAC 50/60Hz for 1min | |||||||
| Ambient temp./Hum. |
-20℃ ~ +80℃ / 45% ~85% RH | |||||||
| Weight | Apporx.105g | Apporx.100.g | Apporx.110g | |||||

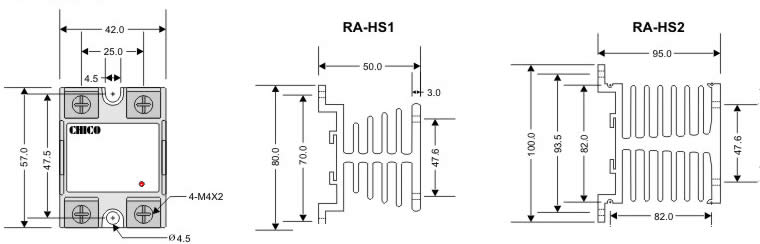

| 外觀尺寸 (Unit : mm)： |
 |
下載PDF檔 (141KB) |
